Recovery TLV Clinic Equipment

What it does

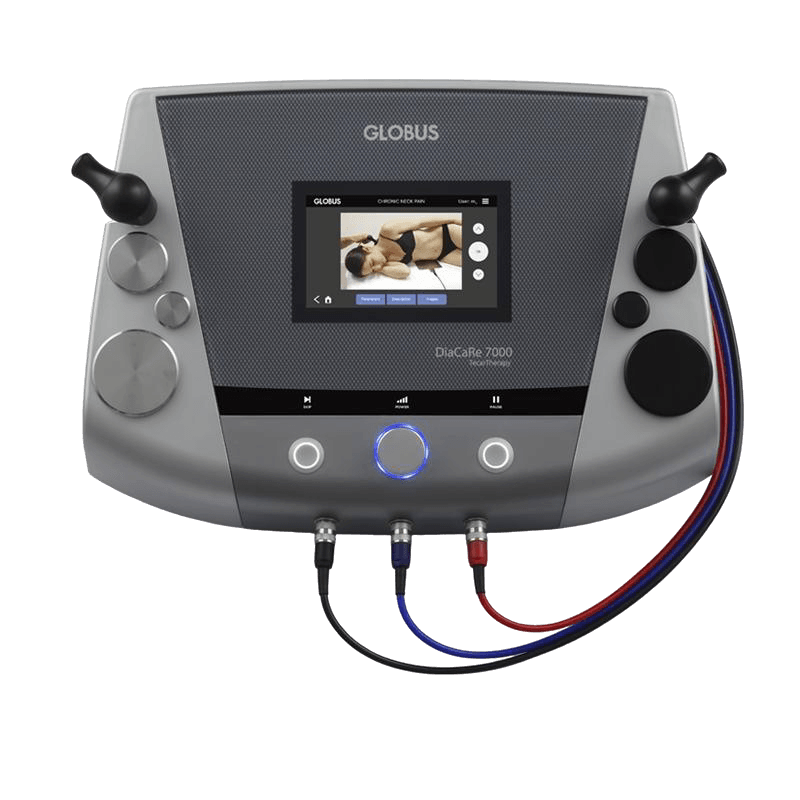

TECAR delivers controlled deep heat — typically raising tissue temperature 3-43°C above baseline at depths up to 4-6 cm. This is not a surface massage and not a TENS unit. The depth of heating triggers three concurrent biological cascades: vasodilation (increased local blood flow by 100-300%), accelerated cellular metabolism (faster ATP production and waste clearance), and reduced muscle spasm (via neuromuscular gate-control mechanisms).

Patients typically feel three things during a session: a deep warming sensation in the target tissue (not painful), gradual reduction of localised pain, and a "loosening" of guarded muscle tone. Effects continue 24-72 hours after each session and accumulate across sessions.

How it works

TECAR uses radio-frequency electromagnetic energy at 0.4-1.2 MHz, transferred through the body via two electrode modes:

• Capacitive mode — an electrode with a dielectric (insulating) coating creates a high-frequency electric field that concentrates energy in superficial soft tissue: muscles, fascia, hypodermis. Used for muscle spasm, superficial trigger points, post-exercise recovery.
• Resistive mode — a bare conductive electrode drives energy through high-resistance structures: tendons, ligaments, bone, cartilage, deep fascial layers. Used for chronic tendinopathies, deep adhesions, joint capsules.

The patient holds a return plate that completes the circuit. The clinician moves the active electrode over the target region for 8-15 minutes, monitoring tissue temperature by hand and patient sensation. Energy converts to heat at the target depth without burning the skin — because the energy is converted in tissue, not at the surface.

What it does

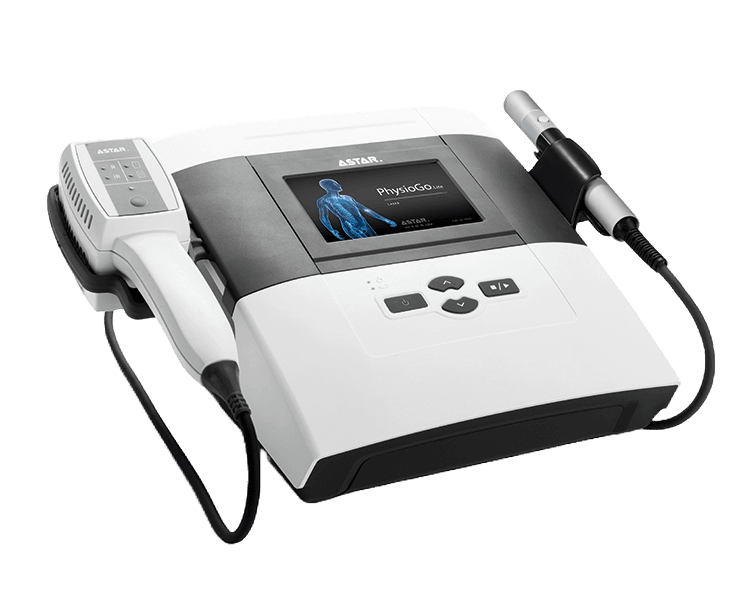

Class IV laser delivers concentrated coherent photonic energy (10-15 watts) to tissue, accelerating cellular healing through a phenomenon called photobiomodulation (PBM). It does three things at the cellular level: increases mitochondrial ATP production, reduces oxidative stress, and modulates inflammatory mediators. At the clinical level: faster healing, less pain, lower swelling.

Unlike LLLT (Low Level Laser Therapy / Class III, 0.5-0.8W), Class IV is high-power: it penetrates deeper (3-5 cm), treats larger areas in less time (2-5 minutes per region), and can reach deep joints (shoulder, hip, lumbar spine) that older lasers could not. Sessions are short, painless, and require eye protection (laser glasses) for safety.

How it works

The laser emits coherent light at specific therapeutic wavelengths — typically infrared (808-980 nm) for deep penetration and red (660 nm) for superficial work. These photons are absorbed by chromophores in the cell, primarily cytochrome c oxidase in mitochondria. This absorption triggers a cascade:

• Step 1 — Photon absorption releases nitric oxide (NO) bound to cytochrome c oxidase, reactivating the enzyme
• Step 2 — Reactivated electron transport chain produces 2-3× more ATP per cell
• Step 3 — Cell metabolism upregulates: protein synthesis, DNA repair, antioxidant production
• Step 4 — Inflammatory mediators (prostaglandins, cytokines) are downregulated
• Step 5 — Tissue repair processes accelerate by 20-40% compared to natural healing

Class IV's higher power (10-15W vs 0.5W in Class III) means each photon dose accumulates faster — a 5-minute Class IV session delivers similar total energy to a 30-40-minute Class III session. This makes it practical for clinical use rather than a 'nice idea' that takes too long.

What it does

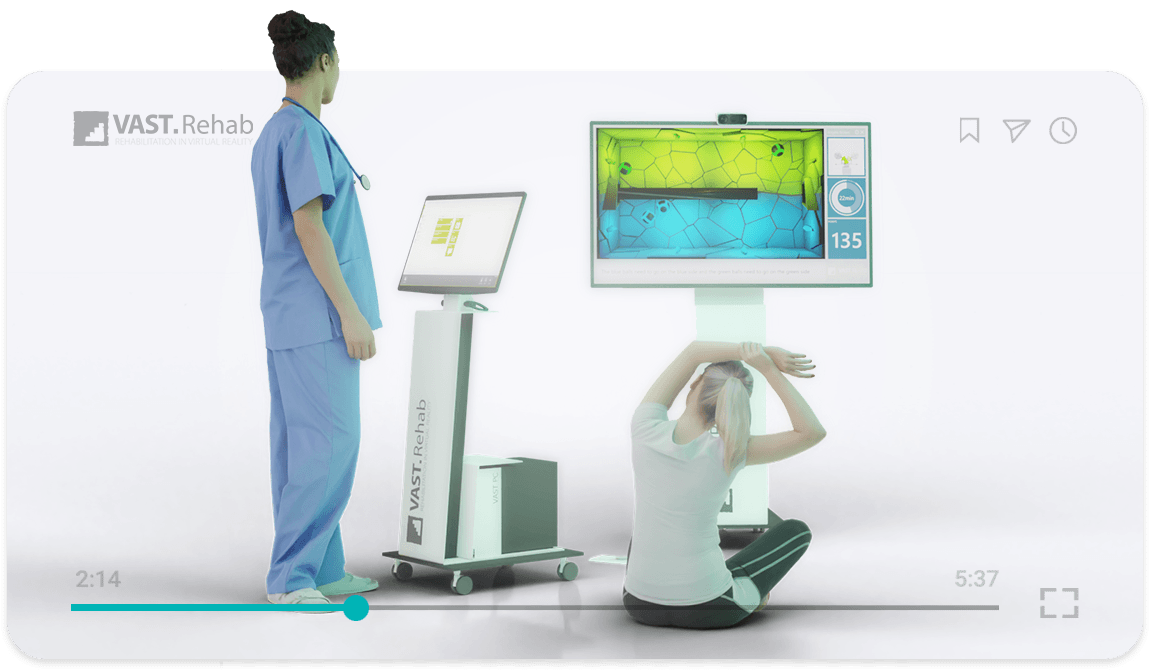

VR (Virtual Reality) rehabilitation uses immersive 3D environments to challenge balance, proprioception, motor planning, and movement confidence in ways traditional rehab equipment cannot match. The patient wears a head-mounted display and moves their body — the virtual world responds in real time. They might catch falling objects, navigate obstacle courses, lean to avoid moving targets, or perform sport-specific tasks in a simulated environment.

Two distinct clinical applications: (1) neuromotor retraining for objective balance and coordination deficits (post-ACL, post-stroke, balance in older adults), and (2) graded exposure for psychological barriers to movement (kinesiophobia in chronic pain, return-to-sport anxiety after major injury). The system tracks performance metrics — sway, reaction time, accuracy, range of motion — providing objective data on progression.

How it works

VR systems combine three components:

• Head-mounted display (HMD) — high-refresh-rate (90-120 Hz) screens display the virtual environment to each eye separately, creating depth perception
• Motion sensors — accelerometers, gyroscopes, and external trackers detect body movement at 1000+ samples/second
• Real-time rendering engine — updates the virtual scene based on body position with sub-millisecond latency, creating a closed motor-perception loop

The clinical magic comes from two psychological mechanisms: distraction (the brain processes virtual challenges, reducing perceived pain during exertion — patients often perform 30-50% more reps before reporting fatigue) and graded exposure (movements that the patient avoids in real life can be practiced in a low-stakes virtual environment, gradually rebuilding confidence). For neuromotor cases, VR provides repeatable, quantifiable challenges with progression that mirrors task complexity in real life.

What it does

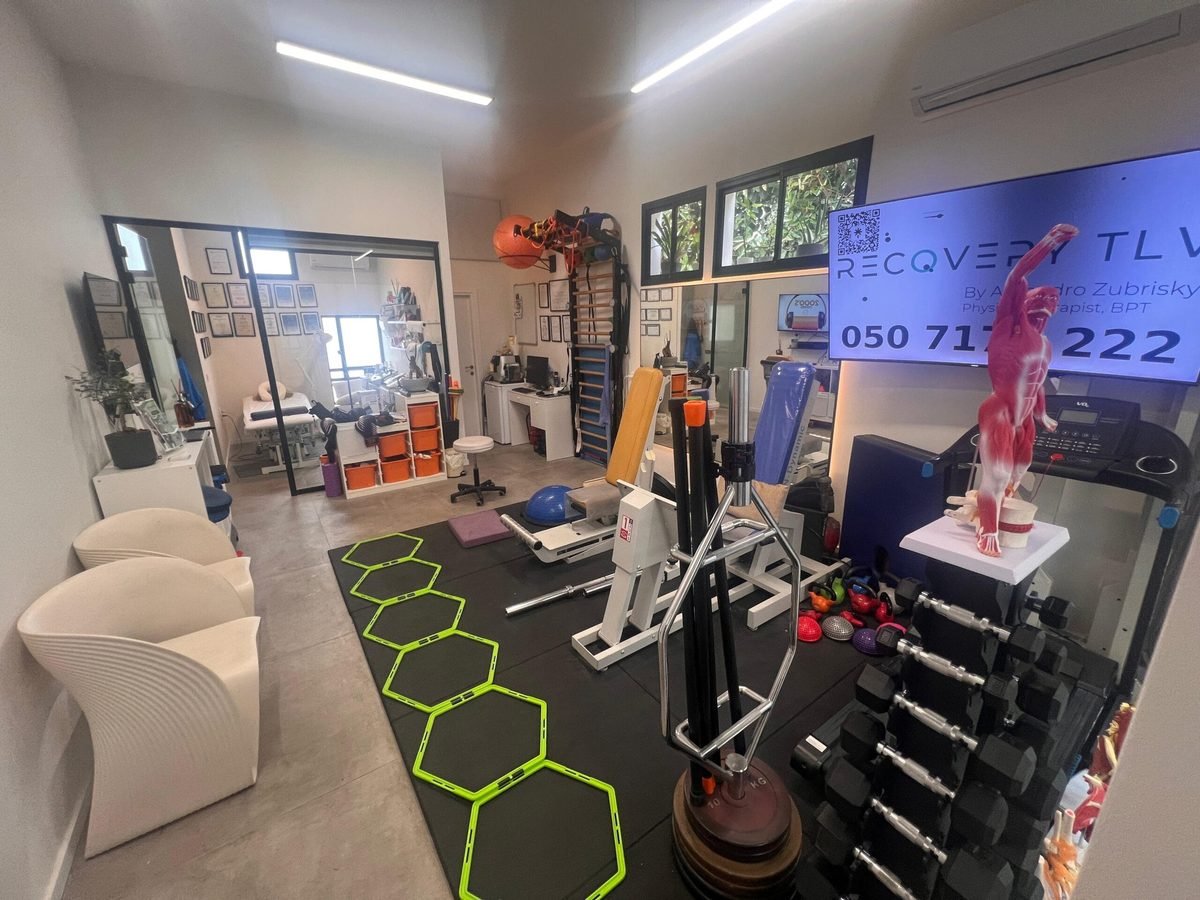

Professional strength equipment is the unsexy backbone of real rehabilitation. Manual therapy and modalities reduce pain and tissue stress. Strength training rebuilds the tissue's capacity to handle the loads of daily life and sport. Without progressive loading, an injury "heals" but the tissue remains weaker than its load demands — which is why injuries recur. The equipment at Recovery TLV enables fine load progression from rehabilitation to athletic return without the patient having to switch venues.

The inventory includes: free weights (dumbbells 1-50 kg, plates, bars), kettlebells (8-32 kg), resistance bands at multiple intensities (Theraband and progressive rubber tubing), selectorised machines for each major muscle group (leg press, lat pulldown, chest press, leg extension, hamstring curl), specific tools for evidence-based protocols (FlexBar for Tyler Twist, slant boards for eccentric calf raises, isokinetic-style devices for HSR), and balance/stability tools (BOSU, wobble boards, foam pads).

How it works — the principles

Three principles of progressive loading guide equipment use:

• Specificity — strengthen the tissue and muscle pattern that fits the patient's task. A runner with patellar tendinopathy needs progressive squat-pattern loading, not isolated quadriceps machine work.
• Progression — load (weight, sets, reps) increases gradually, typically 5-10% per week, calibrated to symptom response. Too fast = re-injury; too slow = no adaptation.
• Variation — different rep ranges, tempos (especially eccentric vs concentric), and exercise variants drive different adaptations. For tendinopathies, slow eccentric phases (3-5 seconds) at heavy loads (Heavy Slow Resistance) drive collagen reorganisation.

Specific tools support specific evidence-based protocols. The FlexBar enables the Tyler Twist eccentric exercise (Tyler 2010, JSES — DASH score improvement +76% vs +13% with standard physiotherapy). Selectorised machines allow precise load matching during rehabilitation phases when free weights would be unsafe due to control limitations. Heavy resistance bands support open-chain rotator cuff strengthening with constant tension throughout the range.

What it does

Deep Oscillation (commercial name HIVAMAT) is the modality of choice when heat is contraindicated and yet deep tissue work is needed. It produces gentle pulsed tissue vibrations at depths up to 8 cm without thermal effect, addressing lymphatic drainage, oedema, fibrosis, and scar maturation. It is the bridge between very acute injury (where TECAR's heat would worsen inflammation) and the sub-acute phase. Unlike massage, the hand barely glides over the skin — the work happens in the electrostatic field beneath.

Patients report a unique sensation: a fine, deep, pulsing "fluttering" through the tissue, completely painless, often relaxing to the point of drowsiness. Sessions typically last 15-30 minutes. Effects on swelling are often visible within the same session.

How it works

The system creates an alternating electrostatic field between two electrodes — one held by the clinician (via insulating gloves) and one held by the patient (return electrode). At programmable frequencies (5-250 Hz), the field rapidly polarises and depolarises the tissue between the electrodes. The result: gentle oscillating mechanical motion of the tissue itself, including deep structures, fascia, and lymphatic vessels:

• Low frequencies (5-25 Hz) — primary lymphatic effect; mobilises tissue fluid, reduces oedema
• Mid frequencies (25-80 Hz) — fascial mobilisation, tissue softening, scar work
• High frequencies (80-250 Hz) — analgesic effect, muscle relaxation, neuromuscular work

Because there is no heat and no shear force, Deep Oscillation can be applied directly over fresh surgical incisions, acute haematomas, and even open wounds (with sterile film). This is unique among physical modalities.

What it does

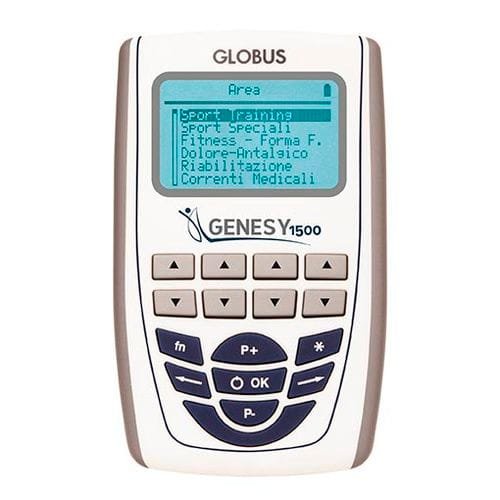

TENS is the most widely used electroanalgesic modality in physiotherapy. It applies controlled low-intensity electrical pulses through skin electrodes to modulate pain processing in the nervous system. Used for both acute pain (immediate relief during loading or movement) and chronic pain (ongoing self-management). Compact home units allow patients to manage flares independently — TENS is one of the few clinic modalities that translates effectively to home self-care.

Patients feel a controlled tingling, buzzing, or rhythmic tapping sensation that should be strong but not painful. The intensity is patient-controlled. Effects begin within minutes of activation and last for the duration plus a residual analgesic window of 30 minutes to several hours.

How it works

TENS operates through two distinct neurophysiological mechanisms depending on parameters:

• Conventional / High-Frequency TENS (50-100 Hz, low intensity, sensory) — Activates large-diameter Aβ sensory fibres. Per the Gate Control Theory (Melzack & Wall, 1965), input from large fibres "closes the gate" at the spinal cord dorsal horn, blocking transmission of nociceptive signals from smaller C and Aδ fibres. Fast onset, fast offset. Best for acute pain.
• Acupuncture-Like / Low-Frequency TENS (1-4 Hz, high intensity, motor) — Produces visible muscle twitches. Activates descending pain modulation pathways and triggers endogenous opioid (β-endorphin, enkephalin) release. Slower onset (~20 minutes), longer-lasting effect (up to several hours post-application). Best for chronic pain.
• Burst TENS — combines both mechanisms in alternating cycles

Clinical electrode placement strategies: directly over the painful area, over the corresponding spinal segment, over peripheral nerve trunks, or over acupuncture points. Skin must be clean, dry, and intact. Sessions typically 20-30 minutes; can be used multiple times daily.
